Z026438 Vitocal 150-A (AWO-M-E-AC-AF 151.A08) 230V 8kW

Vitocal 150‑A Air Source Heat Pump.

Type AWO-M-E-AC-AF 151.A08 Single Phase 230V 8kW

Monoblock heat pump with indoor and outdoor units:

For room heating/cooling and DHW heating, up to 70 °C flow temperature

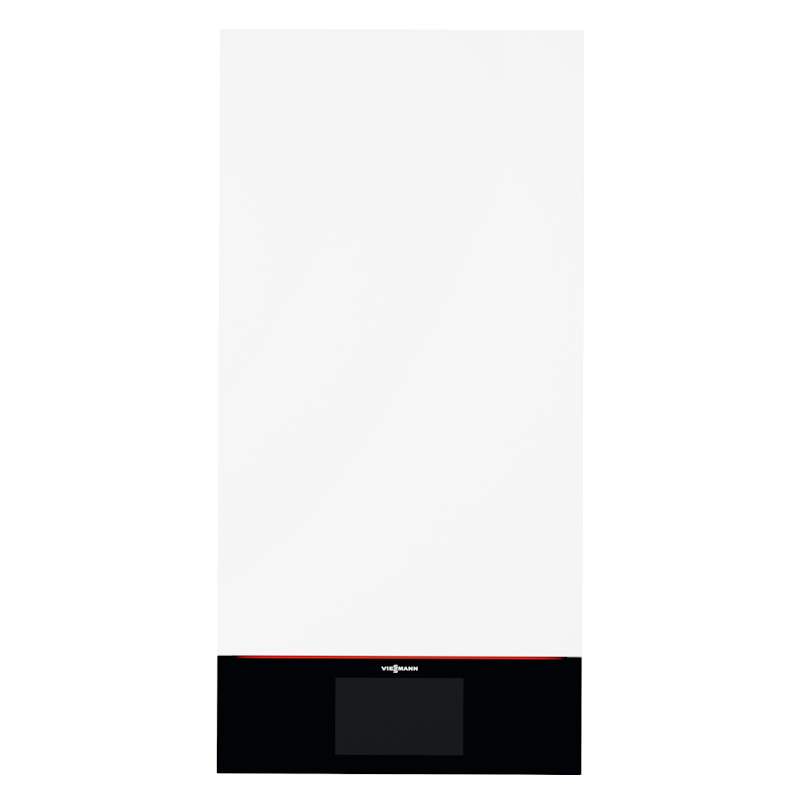

Monoblock indoor unit with heat pump control unit
High efficiency circulation pump for the secondary circuit
4-3-way diverter valve and safety assembly
Integral instantaneous heating water heater
Integral buffer cylinder and overflow valve

Heat pump control unit for weather-compensated operation.

7-inch colour touchscreen with energy cockpit
WiFi hotspot for local service without internet connection
Internet connection via WiFi
Control of a DHW circulation pump
Control of an instantaneous heating water heater
Active cooling control function
Integral heat meter
Setting of low-noise mode for the outdoor unit
Optimised energy management, e.g. in conjunction with photovoltaic system, power storage system
Display of energy flows in the ViCare app and ViGuide

AF Version:

With integral electric ribbon heater in the condensate pan
Permissible operating pressure: Heating water 3 bar (0.3 MPa)
Colour of indoor unit: Vitopearlwhite
Colour of outdoor unit: Vitosilver
Low running costs thanks to high COP (coefficient of performance) to EN 14511: Up to 5.0 at A7/W35
Output control and DC inverter for high efficiency in partial load operation
A maximum flow temperature of up to 70 °C at an outside temperature of -10 °C enables use in both new build and modernisation projects.
Self-optimising control of the flow rate via Viessmann Hydro AutoControl
Environmentally responsible, natural refrigerant R290 with a particularly low GWP of 0 (GWP = Global Warming Potential)
Convenient reversible design for heating and cooling
Especially quiet operation thanks to Advanced Acoustic Design (AAD)
Web-enabled through integral WiFi or service link
Operation, optimisation, maintenance and service via ViCare app and ViGuide
Guided commissioning via ViGuide

Standard delivery:

Complete heat pump in monoblock version, comprising an indoor and outdoor unit.

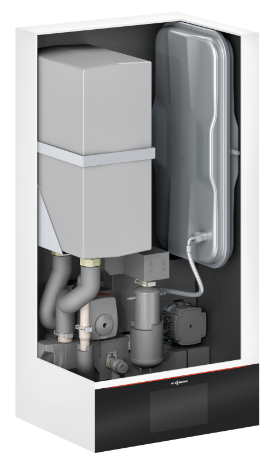

Indoor unit:

Integral 4/3-way valve for central heating/DHW heating/bypass
Integral high efficiency circulation pump for the secondary circuit
Integral instantaneous heating water heater
Integral 16 litre buffer cylinder
Integral safety valve and digital pressure gauge
Weather-compensated heat pump control unit with outside temperature sensor
Flow sensor
Wall mounting bracket, standard connection pipes
10 l diaphragm expansion vessel

Outdoor unit:

Inverter-controlled compressor, 4-way diverter valve, electronic expansion valve, evaporator, condenser, EC fan
Factory-filled with refrigerant R290
Heating water filter upstream of condenser
Transport aid for outdoor unit
AF version: With integral electric ribbon heater for the condensate pan

Important Notes.

Heat pumps must be commissioned by Viessmann Technical Service or a specialist heat pump contractor certified by Viessmann
A hydraulic connection set must also be ordered to install the appliances; see "Accessories"
If the heat pump is being installed to modernise a heating system, a dirt separator with magnet is essential; see "Accessories"

Viessmann ViCare Application:

Vitocal 150-A Air Source Heat Pump 230V 8kW

Vitocal 150-A Installation Packs

Vitocal 150-A Control

Mobile applications and energy management systems.

Connectivity Inside.

Connectivity inside is the intergrated WiFi interface for operating and servicing systems using Viessmann Apps.

Communication technology.

ViCare app – mobile applications for system users:

Mobile operation of the heating system for heating and DHW.
Assistance functions and fault display with option for direct connection to a contractor for service requests.

Tools for service, maintenance and commissioning.

ViGuide – mobile applications for trade partners:

Service and maintenance with ViGuide for optimising workflows in the Viessmann trade partner's business.
Ensures customer-friendly online service for the system user, provided they have enabled service via the ViCare app.
Straightforward and efficient commissioning of heat generators with integral communication module and battery storage systems, performed by heating contractors using Viguide.
In addition to the free version, ViGuide Plus and ViGuide Pro are also available as paid-for versions with additional analysis, remote maintenance and optimisation functions.

Energy management systems.

Viessmann energy management:

Viessmann energy management is integrated into the latest generation of Viessmann heat pumps and energy storage units
It enables balanced operation of the components in the house that generate, consume or store electricity.
The focus is on optimising self-consumption of self-generated electricity from photovoltaic systems.
The energy management system provides extended information about electricity flows and also CO2 savings.
If desired, customers can add further optimisation levels in the ViCare app.

For more information on the system requirements, the functions and use, see Viessmann's Main Website Energy Management

Buying into Viessmann.

Viessmann Vitocal heat pumps provide customers with the comfort and peace of mind of a free parts and labour repair service subject to the terms and conditions below and the warranty period of your heat pump.
During the period of the warranty, Viessmann will at their option, repair or replace a heat pump free of charge where it suffers a mechanical or an electrical breakdown as a result of defective workmanship or materials, subject to the following conditions and exclusions.

Warranty qualification requirements

For standard warranty of 2 years, you or your installer can register the installation, using the online option available at Vitocal Registration.

Great Britain:

In order for your heat pump to qualify for a warranty longer than 2 years, your installation must be registered with Viessmann within 30 days, the model must be valid for a longer warranty and must be installed by a Viessmann Trained Installer.

For the sale of extended warranties, your heat pump installer must be registered as trained by Viessmann, your installer must register your installation within 30 days using the online option available and you must pay for the extended warranty.

Heat Pump Model	Standard Warranty	Trained Installer Only	Chargeable Upgrade Options
Vitocal 100-A	2 Years	5 Years	7 Year warranty + £ Fee
Vitocal 150-A	2 Years	5 Years	7 Year warranty + £ Fee
Vitocal 151-A	2 Years	5 Years	7 Year warranty + £ Fee
Vitocal 200-A	2 Years	5 Years	7 Year warranty + £ Fee
Vitocal 222-A	2 Years	5 Years	7 Year warranty + £ Fee
